All stock codes associated to this product
RNUC12WSHI700000I, 6255281

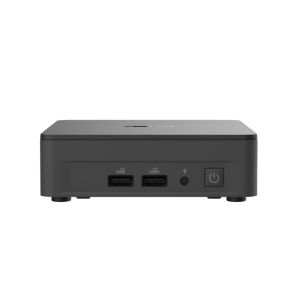

Asus NUC 12 Pro NUC12WSHI7 Barebone System - Mini PC - Intel Core i7 12th Gen i7-1260P 3.20 GHz Dodeca-core (12 Core) - Intel Chip - 64 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 2 Total Memory Slots - NVMe, Serial ATA Controller - Intel Iris Xe Graphics Graphic(s) - IEEE 802.11 a/b/g/n/ac/ax - Bluetooth 5.2 - HDMI - DisplayPort - Network (RJ-45) - 2 M.2 Interface(s) - 1 SATA Interface(s) - 2.5 Gigabit Ethernet - Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise, Red H
NUC 12 Pro Kit empower businesses with revolutionary performance, comprehensive security, and the peace of mind of remote manageability.
- 12th Gen Intel Core i7/i5/i3 processors or Intel vPro Enterprise with 12th Gen Intel Core i7/i5 processors
- Intel Iris Xe graphics
- Up to 64 GB dual-channel DDR4-3200 SODIMMsStorage:
- M.2 22x80 key M slot for PCIe x4 Gen 4 NVMe SSD
- M.2 22x42 key B slot for PCIe x1 Gen 3, USB 3.2 Gen 2, USB 2.0, and SATA SSD expandability
- Support in tall chassis for third SSD with 2.5" drive capability (up to 15mm tall)
Built for Business. NUC 12 Pro
Boost business performance with 12th Gen IntelCoreprocessors and the latest features to support productivity, collaboration, and edge compute.
Specifications
| Card Reader | |
| Dimensions | 117 x 112 x 54 mm (0.7L) |
| Drive Bay | |
| Expansion Slot | |
| Form Factor | NUC 12 PRO |
| Front/Rear Ports | FRONT: 1 x USB 3.2 Gen2 Type-A (with BC1.2, 5V/0.9A, 10Gbps) 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x Audio Jack (Line out/Mic in/Headphone out) *Side I/O - 1 x Kensington Lock slot REAR: 2 x Thunderboltâ„¢ 4 (5V/3A, 40Gbps) 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x USB 2.0 (5V/0.5A) 2 x HDMI 2.1 (Up to 4K@60Hz) 1 x 2.5G RJ45 LAN 1 x DC-in |
| Graphics | Integrated - Intel® UHD Graphics |
| LAN | 1 x Intel® I225V, 2.5G LAN, or Intel® I225LM, 2.5G LAN, vPro support |
| Memory | 2 x SO-DIMM, DDR4-3200MHz memory, up to 32GB*2 Remark:2x4GB DDR4 3200 for i3/i5 L10 SKUs 2x8GB DDR4 3200 for i7 L10 SKUs |
| Operating System | No O/S |
| Optical Drive | No Optical Drive |
| Power Supply | No Cord - requires AC06C05AU |
| Processor | Intel® Core™ i7-1260P Processor |
| Product Family | Wall Street Canyon |
| Storage Capacity | no HDD |
| Storage Type | 1 x M.2 2280 PCIe Gen4x4, supports 128GB~8TB NVMeâ„¢ SSD 1 x 2.5" SATA 6Gb/s, supports 4TB 7~15mm HDD 1 x M.2 2242 SATA supports 256GB~1TB SSD Remark: 2.5" HDD support on "H" SKUs only. 1x512GB Gen4 NVMe SSD L10 Skus |
| Warranty | 3YR WARRANTY |
| Weight | 0.8KG |
| Wireless | Intel® AX211 (Gig+), Wi-Fi 6E, Bluetooth 5.2, 2*2, vPro support |
